Construction of a retaining wall to secure a steep slope
- Client
- Magistrat der Landeshauptstadt Wiesbaden, Tiefbau- und Vermessungsamt (municipal authorities of the federal state capital of Wiesbaden, Civil Engineering and Surveying Office)
- Scope of services

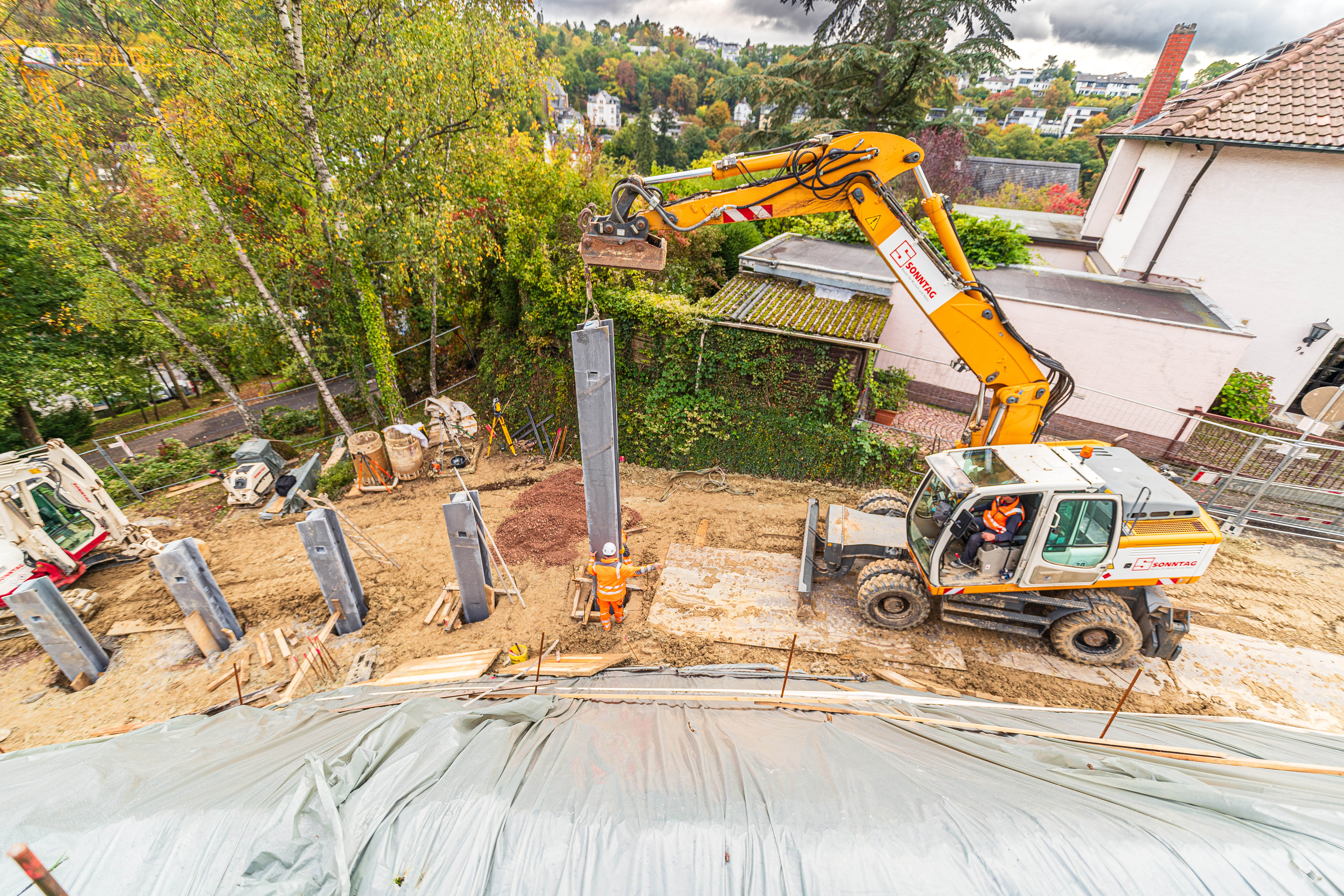

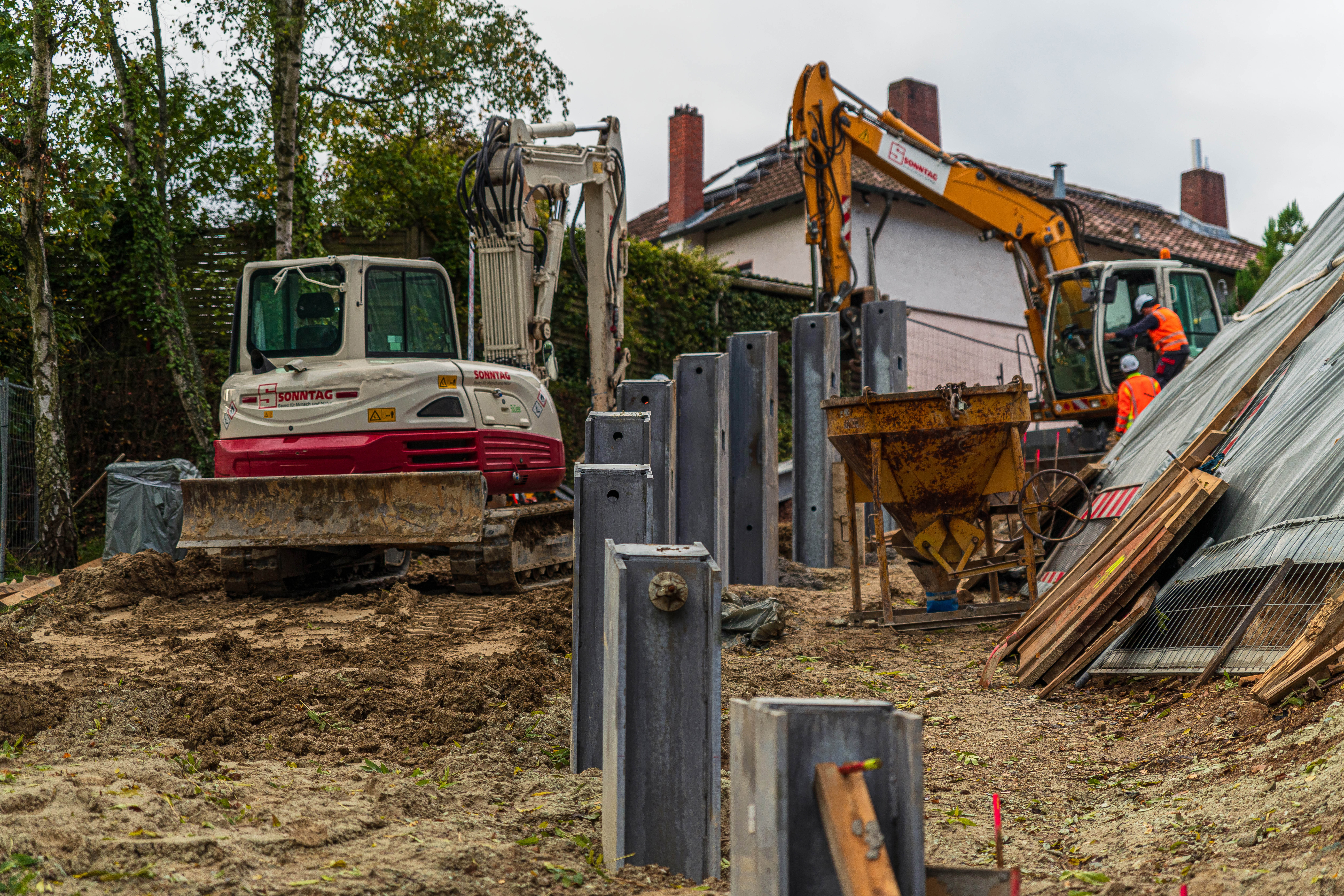

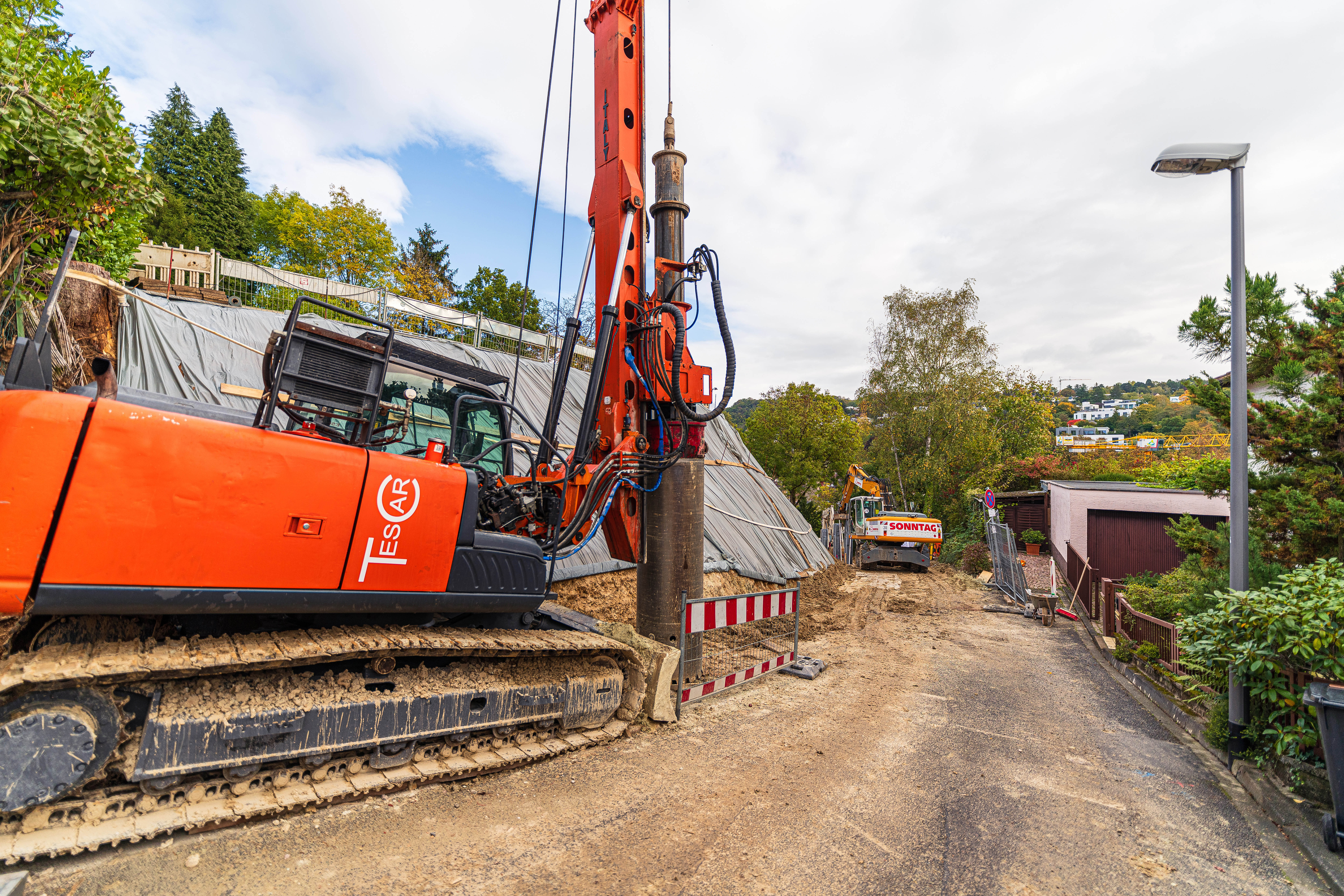

- 23 bored piles diameter 0.75 m, length approx. 4 m, 23 welded steel girders length 5 - 7 m approx. 34 t (approx. 150 m² anti-corrosion coating), 16 micropiles for tie-back anchoring length 12 m, 55 m retaining wall consisting of 66 wall elements made of prefabricated concrete with matrix formwork, 55 m filler bar railing, 700 m³ excavated earth, 800 m³ backfilling of soil
